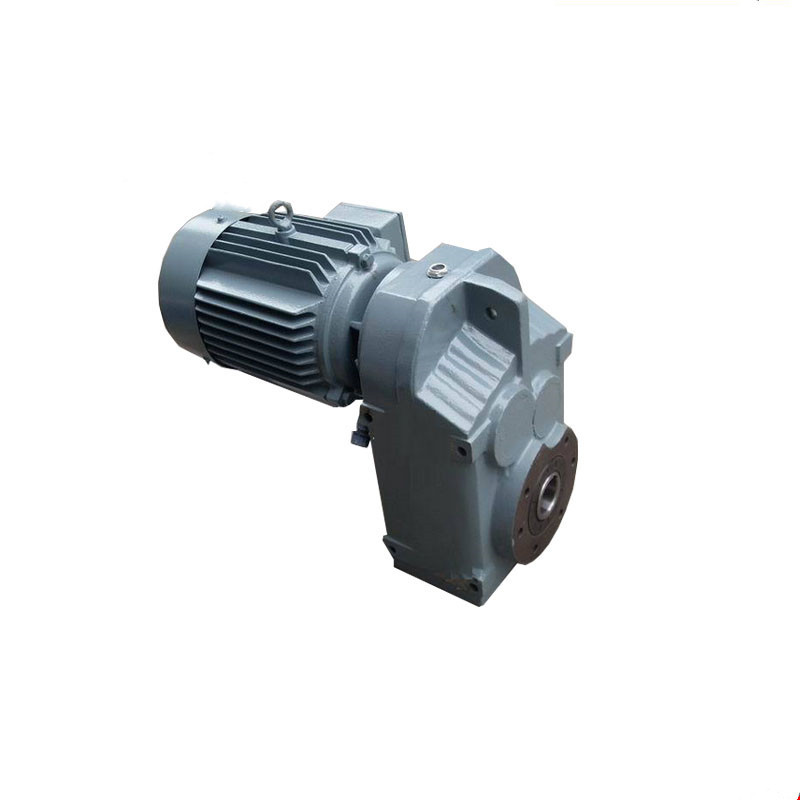

F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission

Brand Name : FANBAO

Model Number : F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127, FAF157

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : 8-15work days

Packaging Details : standard export wooden case

Output Torque : 10.6-952000NM

Input Speed : 750-1500rpm

Output Speed : 14-280rpm

Warranty : 1 year

Color : customer Requirement

Ratio : 3.77~276.77

Efficiency : 94%~98%(depends on the transmission stage)

Mounting Position : Flange, hollow shaft, solid shaft

Certificate : ISO9001. CE

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Material : Gear: 20CrMnTi Housing: HT250 high strength cast iron

Contact Now

F37 -- F97 F Series Parallel Gearbox Reducer For Food Machinery Industry transmission speed reducer

Description :

F series parallel shaft gear reducer has the characteristics of small size and large transmission torque. Designed and manufactured on the basis of the modular combination system, there are a lot of motor combinations, installation forms and structural schemes, and the transmission ratio is finely graded to meet different operating conditions and realize motor integration. The F series reducer adopts the modular design principle of unit structure, which greatly reduces the parts and inventory, and greatly shortens the delivery cycle. The transmission efficiency is high, the performance is low, and the performance is superior. Ribbed high-rigidity cast iron box; hard-tooth surface gears are made of high-quality alloy steel, the surface is carburized and hardened, the teeth are finely machined, smooth transmission, low noise, large carrying capacity, low temperature rise, and long life. Model F37—F157 Power 0.12KW—90KW Reduction ratio 3.77-21162

Advantages of choosing F series gear reducer

1. The F reducer has superior performance and low energy consumption, and the efficiency of the helical gear reducer motor is as high as 95%.
2. Low vibration, low noise, high energy saving, high-quality steel material, rigid cast iron box body, high-frequency heat treatment on the surface of the gear.
3. F helical gear reducer saves space, is reliable and durable, has high overload capacity, and its power can reach more than 90kw.
4. F reducer adopts modular design, small size, light weight, high efficiency, diverse structure, good heat exchange performance, high bearing capacity, it is a novel reduction transmission device, and can be compared with other series of our company Reducer combination realizes low-speed transmission.
5. The shaft adopts alloy steel quenching and tempering, and the standard parts such as bearings and oil seals adopt international and domestic famous brands.
6. The worm wheel of the reducer is made of wear-resistant alloy bronze, the worm adopts the latest optimized design, and the hardened grinding process is used. The friction parts of the speed changer are made of wear-resistant bearing steel, which greatly improves the efficiency and life.

Apart of type specification :

SIZE 37 47 57 67 77 87 97 107 127 157
DF DFA DFF DKAZ DFAF DFAZ
INPUT POWER RATING(KW) 0.18-0.30 0.18-3.0 0.18-5.5 0.18-5.5 0.37-11 0.75-22 1.1-30 2.2-45 7.5-90 11-260
RATIO 3.81-128.51 5.06-189.39 5.18-199.70 4.21-228.99 4.20-271.92 4.12-270.64 4.68-270.64 6.20-255.25 4.63-172.33 12.07-270.18
MAX TORQUE(N.m) 200 400 600 820 1500 3000 4300 7840 12000 18000
WEIGHT(KG) 13 18 34 55 90 150 260 402 700 950

Application :
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.

Mounting position and Position of the motor terminal box :

F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission

Why choose us :

F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery TransmissionF37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery TransmissionF37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission

F series process :
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
Packing and shipping way :
F37-F97 Parallel Bevel Helical Gear Reducer Assembly For Food Machinery Transmission
